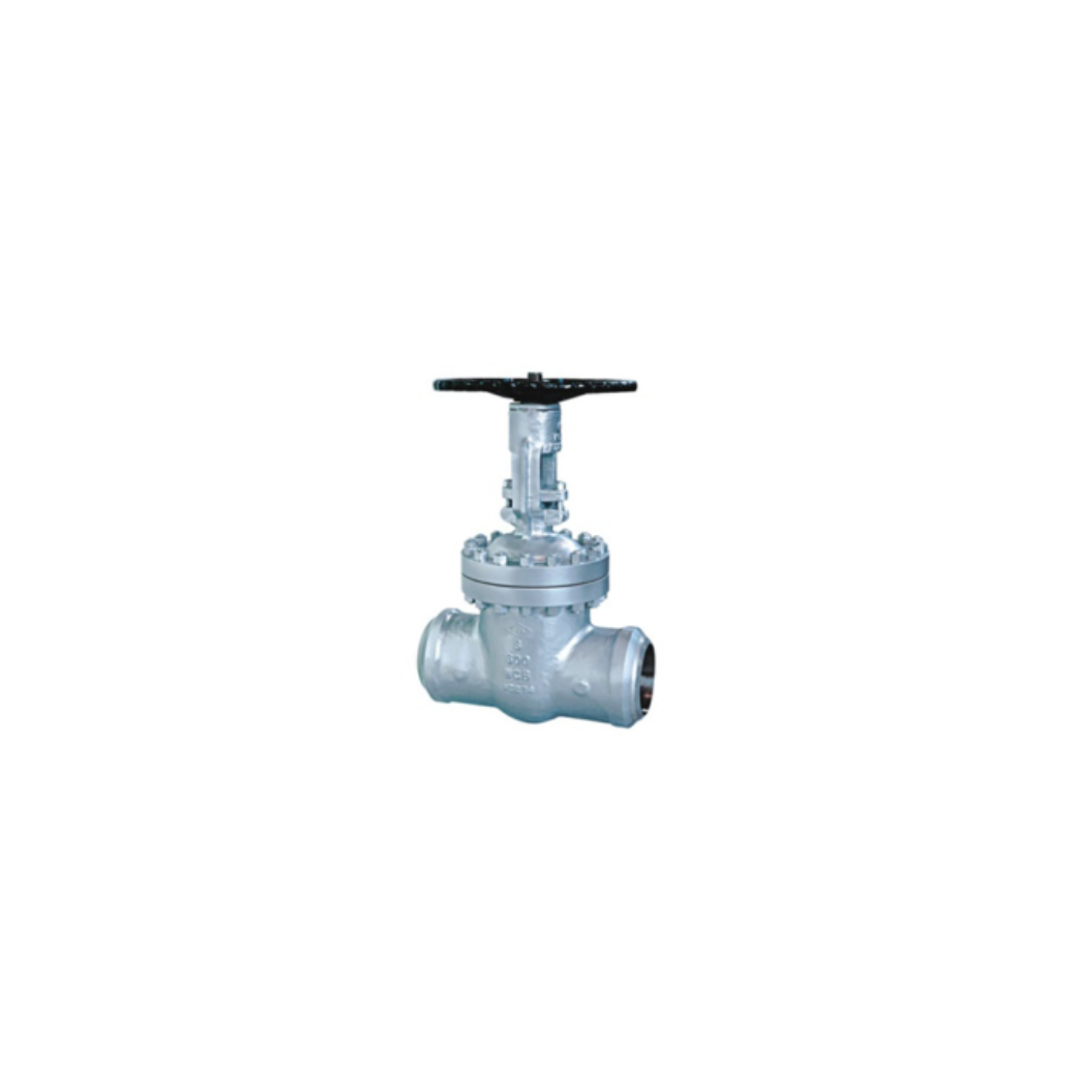

API 600 Gate Valve

  • ➤ Design standard → API 600

    ➤ Length of structure → ASME B16.10

    ➤ Flange connecting end → ASME B16.5/ASME B16.47

    ➤ Butt welding connecting end → ASME B16.25

    ➤ Wall thickness → API 600/ASME B16.34

    ➤ Inspection and test → API 598

    ➤ Pressure and temperature rating → ASME B16.34

    ➤ Product scope → NPS 2~NPS 56, CL150~CL2500

    ➤ Main body material → WCB,LCB,WCC,WC6,WC9,CF8,CF8M,CF3,CF3M,A890 4A etc.

  • ✔︎ The flashboard has two sealing faces. The most commonly used flashboard has a wedge forming by two sealing faces. The wedge angle varies with valve parameters, usually 5.

    ✔︎ The sealing principle of wedge gate valve is seal through close connection of wedging of two sealing faces of wedge flashboard and two sealing faces of valve body.

    ✔︎ Wedge gate valve may be divided into outside stem gate valve (rising stem gate valve) and inside stem gate valve (revolving stem gate valve) according to different opening and closing modes of flashboard driven by valve stem.

    ✔︎ Valve body and valve cover may be connected by bolts or pressure self-tight.
